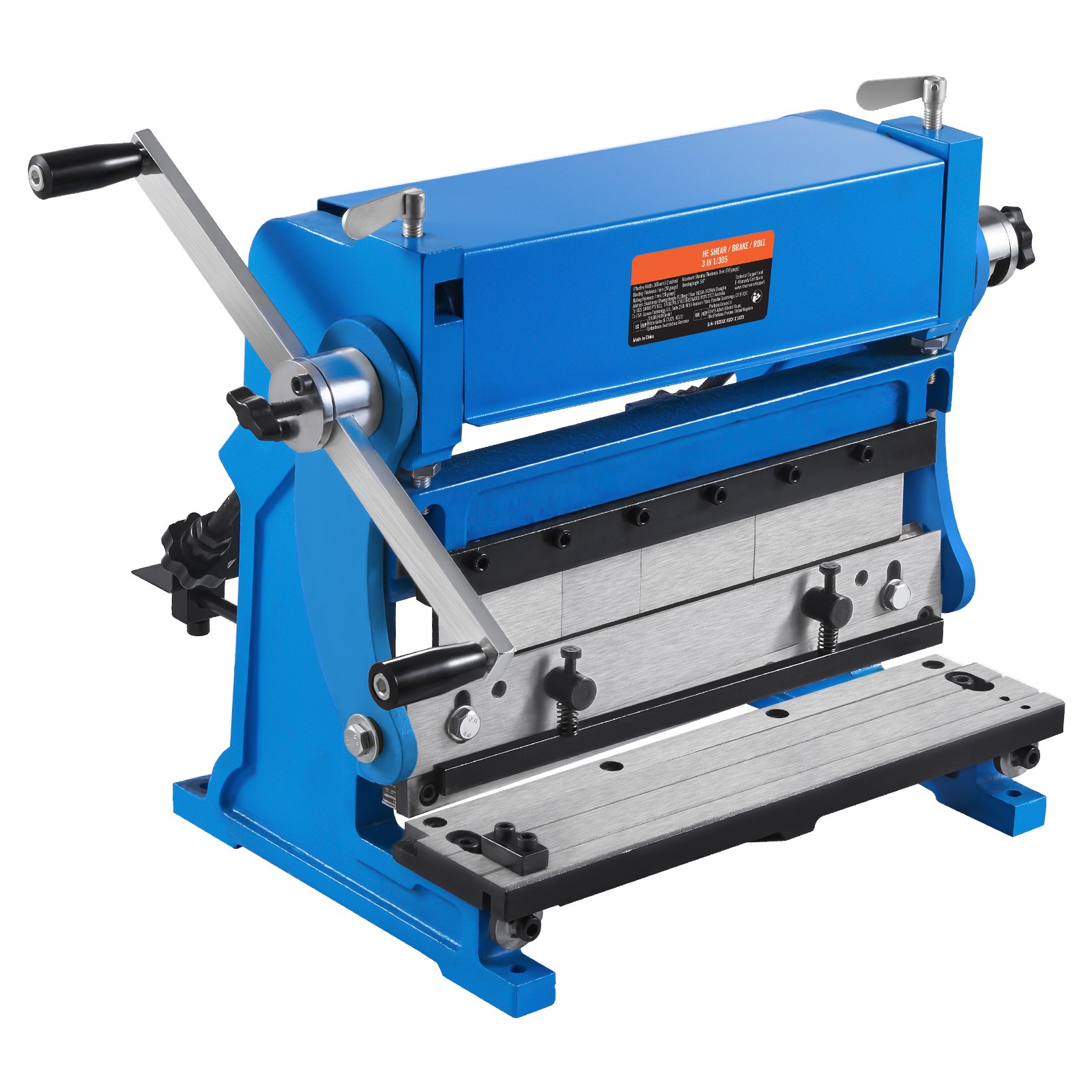

Uimoso 12-Inch Sheet Metal Shear 3-in-1 Combo Shear Brake Roll Machine, 20 GA

USD 279.99 USD

SKU: ITaKmcXP

Brand: Uimoso

GTIN: 199413554115

Condition: New

Tags: ≤235 MPa 1.8 in / 45 mm 12 in / 305 mm 12 in / 305 mm (±3mm) 199413554115 20 Ga 20 GA / 1 mm 28 in / 710 mm (±10mm) 3-in-1/305 90 pounds / 41 kg 90° ± 1° Painted Q235, 45#, HT200 Uimoso

Categories: Metalworking Equipment

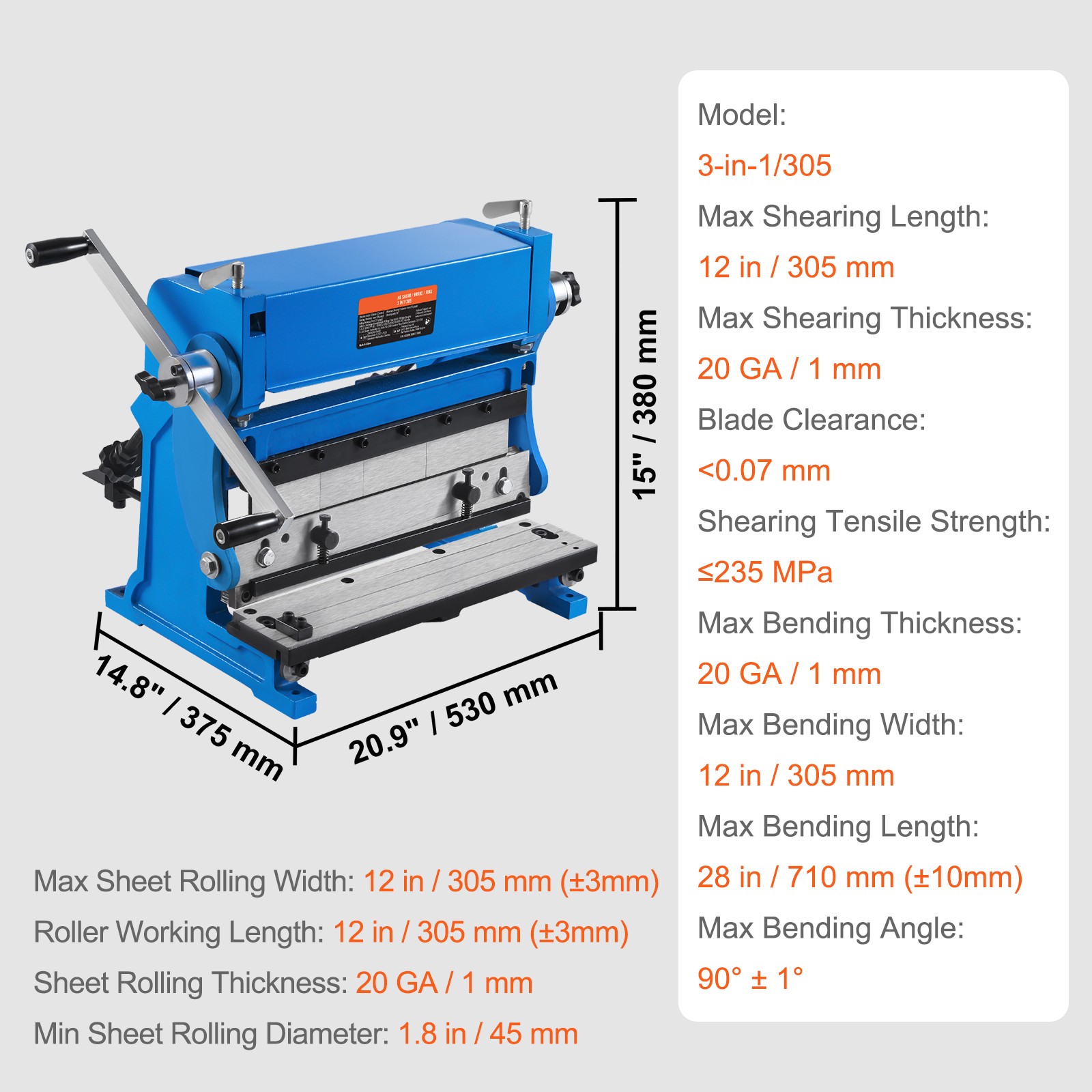

Specifications

Brand	Uimoso
Min Sheet Rolling Diameter	1.8 in / 45 mm
Primary Materials	Q235, 45#, HT200

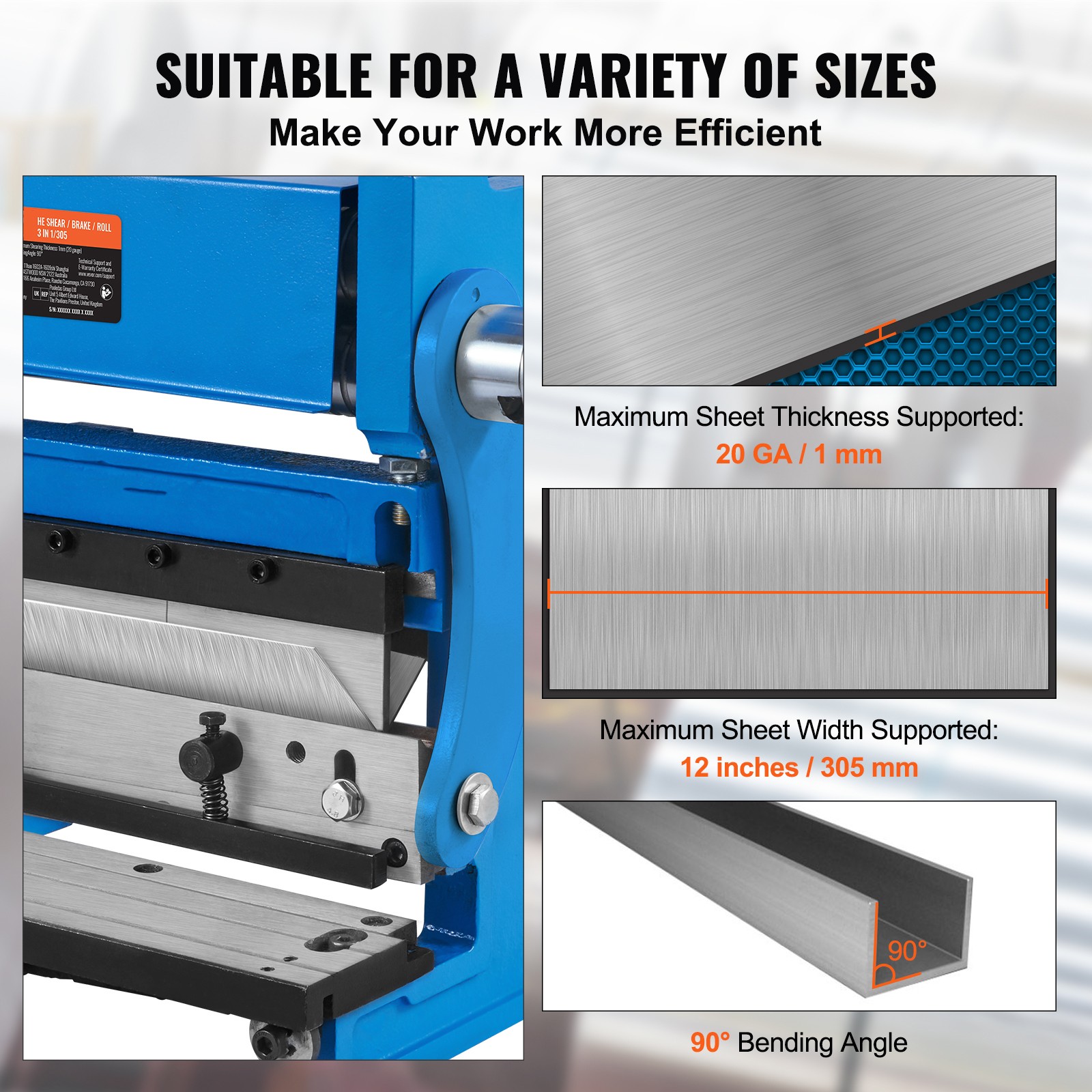

Sheet Rolling Thickness	20 GA / 1 mm
Max Bending Length	28 in / 710 mm (±10mm)
Shearing Tensile Strength	≤235 MPa
Max Shearing Thickness	20 GA / 1 mm
Roller Working Length	12 in / 305 mm (±3mm)
Max Sheet Rolling Width	12 in / 305 mm (±3mm)
Surface Treatment And Color	Painted
Item Model Number	3-in-1/305
Max Bending Thickness	20 GA / 1 mm
Max Bending Angle	90° ± 1°
Max Shearing Length	12 in / 305 mm
Net Weight	90 pounds / 41 kg
Max Bending Width	12 in / 305 mm
UPC	199413554115

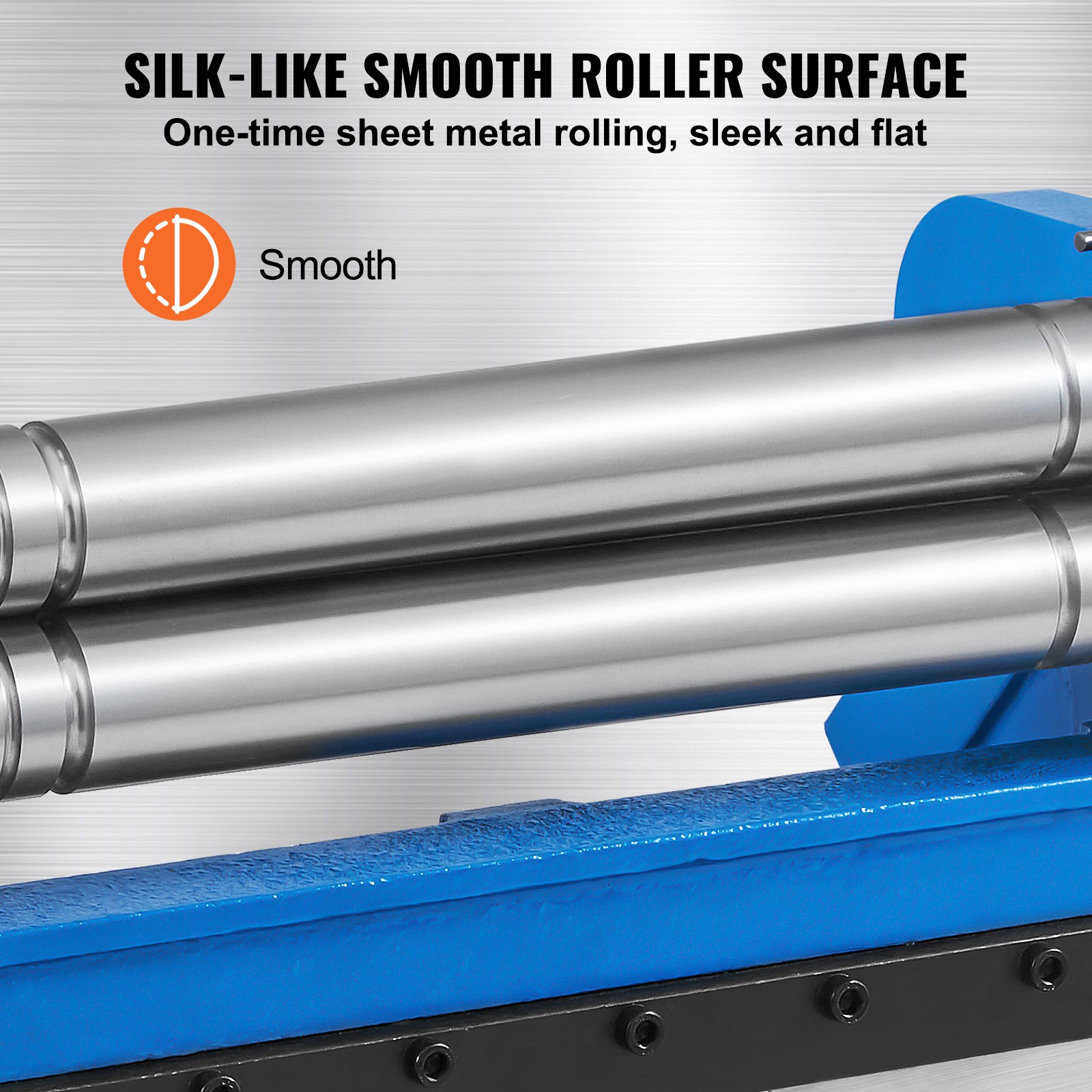

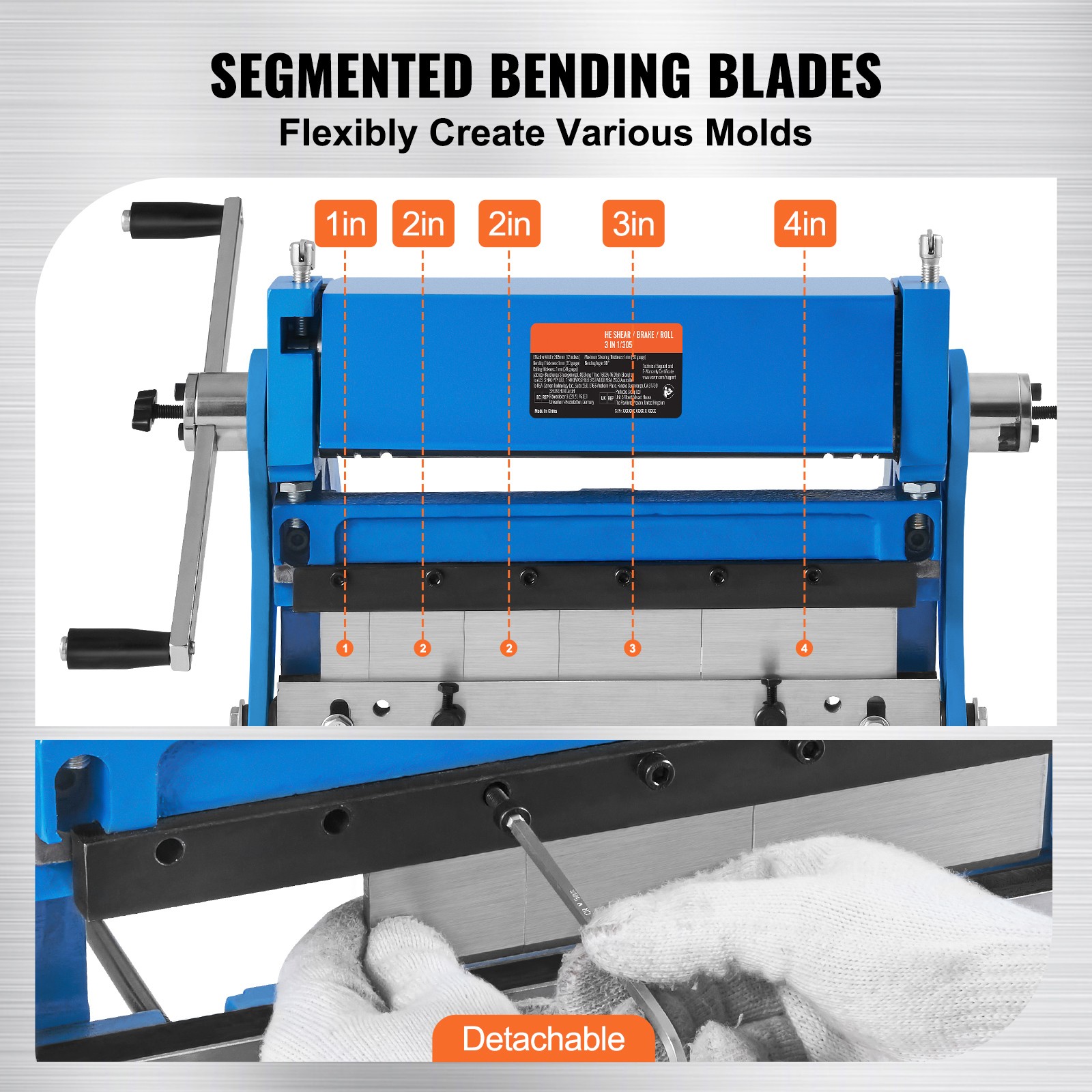

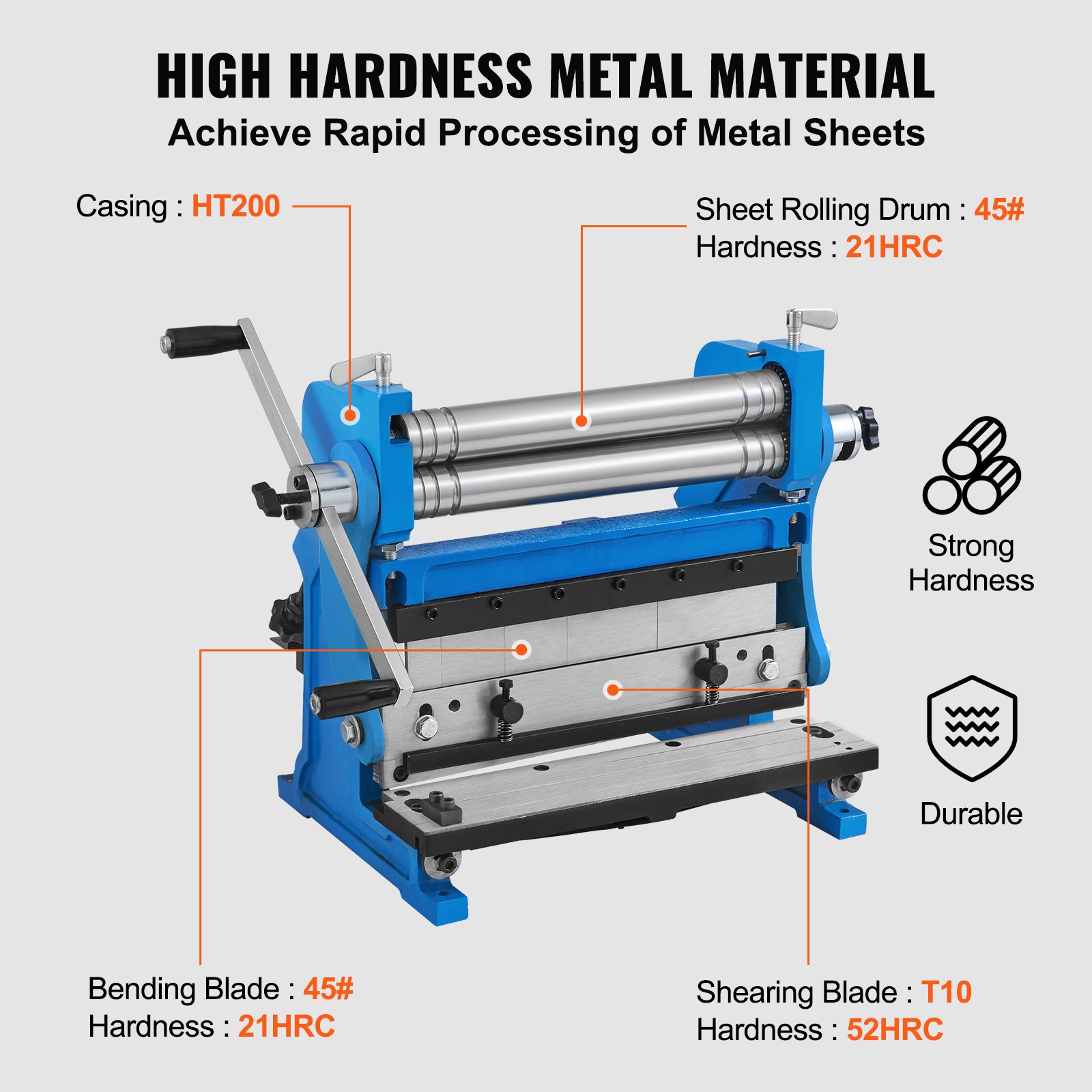

The shearing blade, made from T10 material, ensures clean cuts without burrs. The bending blade and roller are constructed from 45# material, providing excellent strength and resistance to wear. This shear press brake is constructed using high-quality materials to provide consistent and efficient performance.
